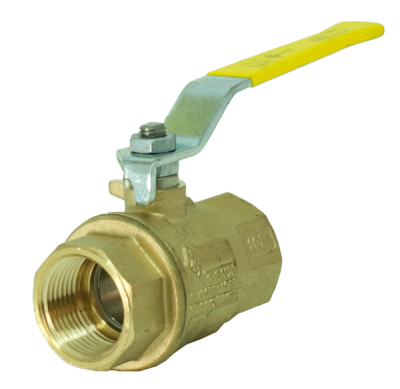

T51/52BZ- 2 PC Full Port Brass Ball Valve
Full Port Commercial and Process Ball Valve
Features include female-to-female end connections and minimization of potential gas leakage under extreme duty and low pressure applications.
Description
RB Series
2 PC Design. Full port minimizes pressure drops and prolongs valve life. Factory tested in open and closed position for bubble tight integrity seat: air under water at 80 PSI (MSS-SP-72.) Available with a chrome plated brass ball (T51BZ) or a stainless stell ball and stem (T52BZ.)
- Pressure ratings 600 WOG / 125 WSP
- Operating Temperature Maximum 366 F
- Female-to-female end connections
- Threaded Ends ANSI B1-20-1 NPT
- Blowout proof stem
- Secondary PTFE stem seal
- Replaceable seats, seals, and thrust washers
- Lever or Nickel Plated Handle • ¼" to 4"
- T Handle • ¼" to 1"
- Solder End available per Factory
- Solder End Available - Consult Factory
Features include female-to-female end connections and minimization of potential gas leakage under extreme duty and low pressure applications.
-
Description
- Pressure ratings 600 WOG / 125 WSP
- Operating Temperature Maximum 366 F
- Female-to-female end connections
- Threaded Ends ANSI B1-20-1 NPT
- Blowout proof stem
- Secondary PTFE stem seal
- Replaceable seats, seals, and thrust washers
- Lever or Nickel Plated Handle • ¼" to 4"
- T Handle • ¼" to 1"
- Solder End available per Factory
- Solder End Available - Consult Factory
RB Series
2 PC Design. Full port minimizes pressure drops and prolongs valve life. Factory tested in open and closed position for bubble tight integrity seat: air under water at 80 PSI (MSS-SP-72.) Available with a chrome plated brass ball (T51BZ) or a stainless stell ball and stem (T52BZ.)
